O2 Fabrication 2005-23 Tacoma Heavy-Duty Shackle Hanger Kit

$999⁰⁰ USD

Add Shackles & Bushings

Add Shackles & Bushings No Shackles & Bushings Needed

Add Cross Brace

Add Rigid Frame High-Clearance Cross Brace No Cross Brace Needed

O2 Fabrication 2005-23 Tacoma Heavy-Duty Shackle Hanger Kit - Add Shackles & Bushings / Add Rigid Frame High-Clearance Cross Brace is a special order or built to order item, and will ship once received at our warehouse. Production and shipping times vary by manufacturer - Contact us for details.

Delivery and Shipping

We're committed to getting your gear to you as quickly and safely as possible and do our best to ship all in-stock items within 2 business days of the order date.
Please review our full Shipping Policy for more details.

Please note, many of the high-quality, specialty products we sell are built-to-order by the manufacturer, meaning there is an additional wait time before the item is even shipped to us or directly to you.
For a list of current lead times by manufacturer, please visit our Manufacturer Lead Times page.

Questions?

Call us at 778-547-2444
Monday-Friday | 9am-5pm PST

Or fill out our contact form below.

Description

The factory rear shackle hangers on 2nd and 3rd Gen Tacomas are prone to excessive flexing and twisting, especially when your truck is hauling overland gear, constant-load leaf packs, or high-clearance rear bumpers. Under hard trail use, these thin, stamped factory brackets fatigue over time, causing unstable handling and potential frame damage.

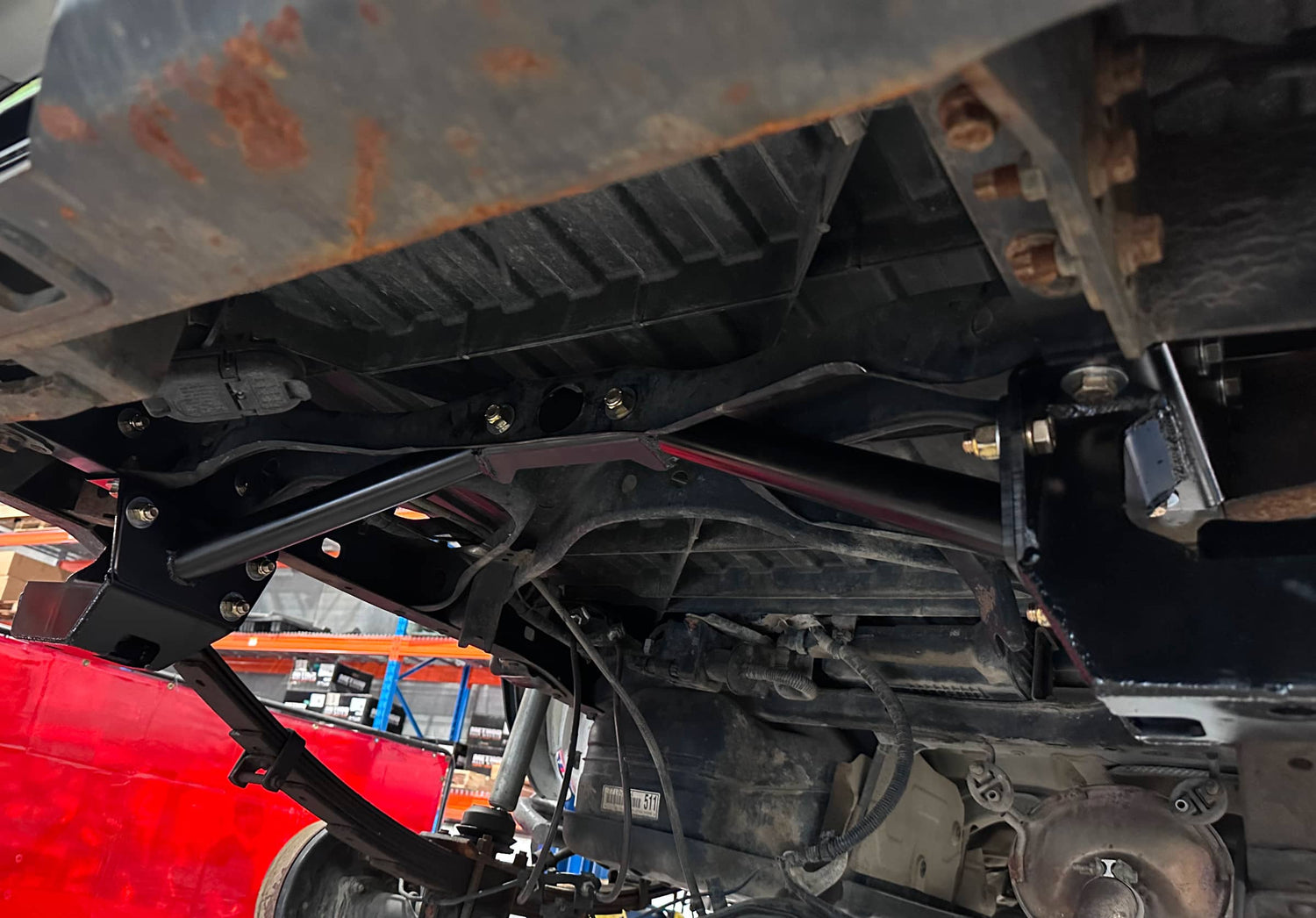

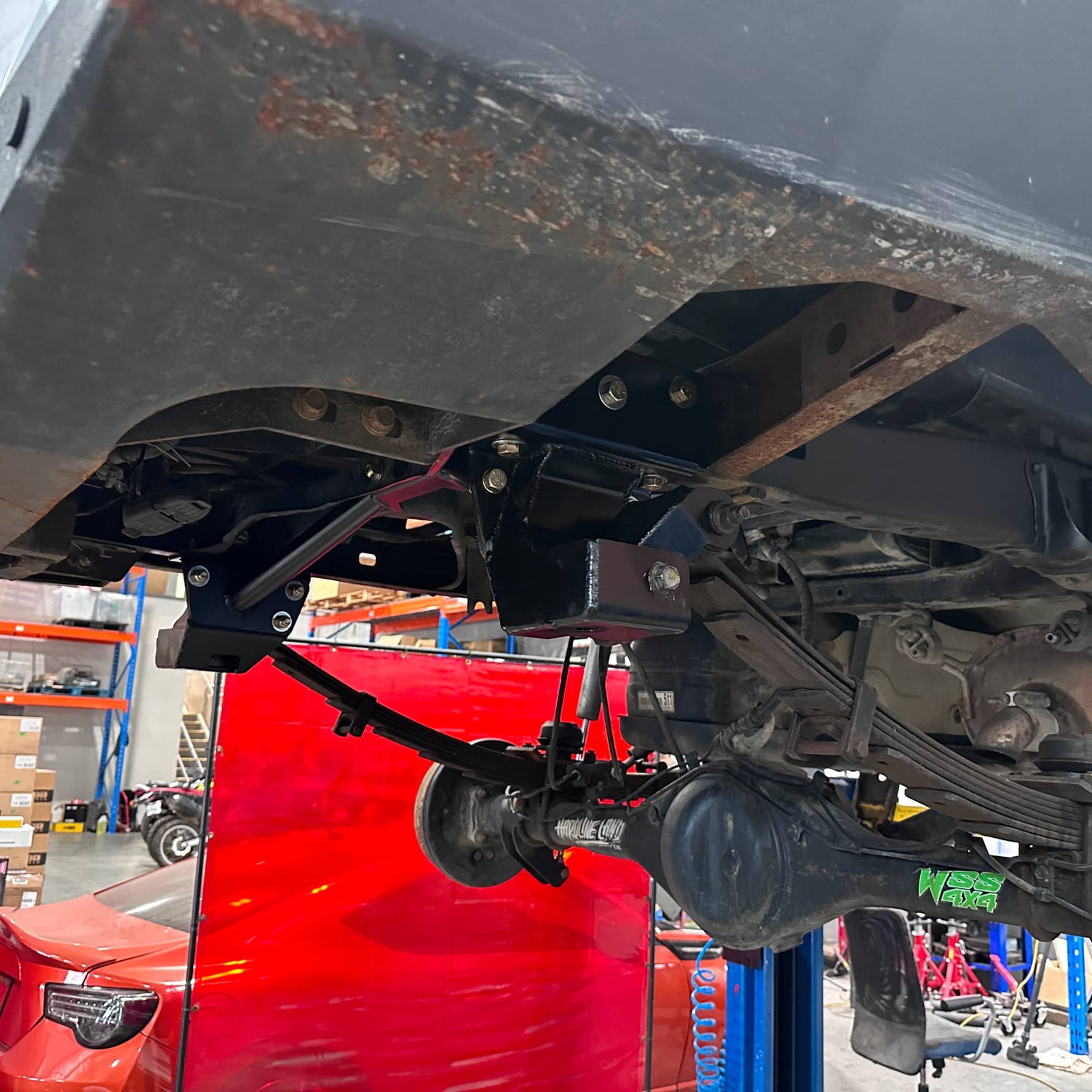

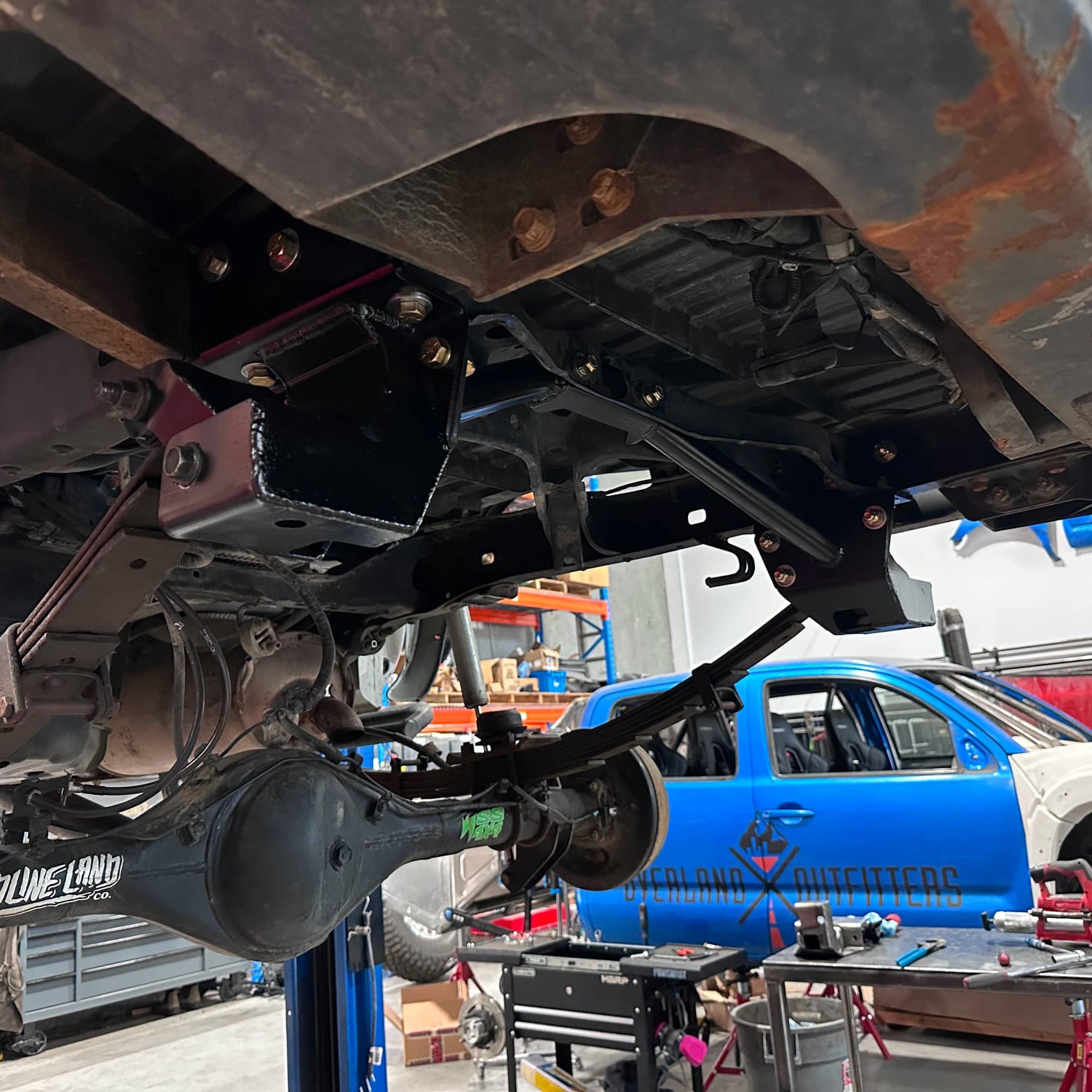

The O2 Fabrication Heavy-Duty Shackle Hanger system replaces these weak factory components with a rigid, frame-strengthening solution. Modular by design, this kit can be run as a standalone hanger upgrade or paired with an optional stiffening crossmember and high-clearance shackles to completely lock in your rear suspension geometry.

Key Features

Eliminates Frame Twist: Replaces flexible factory stamped brackets with rigid, 1/4" plasma-cut steel to maintain structural integrity under heavy loads and hard wheeling.
Modular Strength Options: Install the base hangers on their own, or add the optional 1.75" x 0.120" DOM tubing cross brace to tie the frame rails together and prevent lateral frame deflection.
Increased Axle Droop: Upgrading to the optional 3.6" HD Shackles with polyurethane bushings delivers smoother leaf spring progression and maximizes articulation for larger shock setups.
Broad Suspension Compatibility: Engineered to integrate seamlessly with factory leaf springs or long-travel aftermarket setups from the top names in the industry.
Corrosion Protection: Finished in a durable black powder coat designed to withstand prolonged exposure to rain, mud, and winter road salt.

What’s Included

Base Shackle Hangers (Pair)
- (1) Left Shackle Hanger
- (1) Right Shackle Hanger
- (2) Frame Plate Washers
- (10) 1/2” x 1-1/2” Hex Bolts
- (20) 1/2” Flat Washers
- (10) 1/2” Nylock Hex Nuts
Optional Frame Cross Brace Add-On
- (1) Rigid Cross Brace Assembly (1.75" x 0.120" DOM & 1/4" steel plate)
- (8) 1/2” x 1-1/2” Hex Bolts
- (16) 1/2” Flat Washers
- (8) 1/2” Nylock Hex Nuts
Optional 3.6” HD Shackle Add-On
- (2) Upgraded 3.6" Shackles (3/16" steel & 2" x 0.240" DOM tubing)
- (4) Polyurethane Bushings
- (2) Bushing Sleeves

Questions? Contact us with your specific set up and we can help lock in your suspension set up.

Specifications

Vehicle Compatibility

2nd Gen Toyota Tacoma (2005-2015), 3rd Gen Toyota Tacoma (2016-2023)
Technical Specifications
- Vehicle Fitment: 2005–2015 Toyota Tacoma (2nd Gen) & 2016–2023 Toyota Tacoma (3rd Gen)
- Hanger Materials: 1/4" plasma-cut steel plate
- Cross Brace Materials (Optional): 1.75" x 0.120" DOM tubing / 1/4" steel plate
- Shackle Materials (Optional): 3/16" steel plate / 2" x 0.240" DOM tubing / 3.6" length (Stock is 3.4")
- Shackle Compatibility: Fits OEM 3.4" shackles, O2 Fab 3.6" shackles (spring over axle), and most aftermarket shackles up to 3.8" (Contact us to verify fitment for specific aftermarket shackles).
- Leaf Spring Compatibility: OEM leaf springs and most Spring Over Axle (SOA) aftermarket packs (including Icon RXT, newer style Deavers, and Dobinsons).
- Shock Compatibility: OEM shocks, standard replacement shocks, and smooth-body/bypass shocks up to 12" of travel. Smooth-body/bypass shocks up to 14" of travel are compatible but may require limit straps depending on your leaf and shackle configuration.
- Finish: Industrial black powder coat
Installation Information
- DIY Difficulty: Advanced
- This install requires cutting, grinding, or drilling out the factory chassis rivets to remove the stock hangers before bolting the new kit in place.
- Removing factory frame rivets in a driveway can be an exhausting task without pneumatic tools. If you prefer to save the elbow grease, we offer professional installation for this kit at our shop in Surrey, BC. Contact the Overland Outfitters team today to confirm availability and schedule your appointment.
