Locked Offroad Shocks 2022+ Tundra/Sequoia 2.5" Lift Kit

Description

The 3rd Gen Tundra and 4th Gen Sequoia are capable full-size platforms, but adding heavy overland gear or tackling high-speed washboards will quickly push the factory suspension past its limits, resulting in harsh bottoming out and vehicle sway. The Locked Offroad 2.5" Coilover Lift Kit for the 2022+ Tundra and Sequoia solves this by significantly increasing fluid capacity and cooling efficiency. It provides a direct, bolt-on upgrade engineered to handle high-speed trail inputs and carry extra payload while keeping your daily commute smooth and predictable.

Key Features

22-Position Compression Adjusters: Tailor your suspension damping on the fly. Dial it back for a compliant ride over rough technical trails, or firm it up to minimize nose-dive and body roll under highway braking and cornering.
Up to 25% More Front Wheel Travel: Keeps your front tires tracking true through deep ruts and off-camber cross-axle obstacles, ensuring consistent traction when things get slick.
2.5" Shock Bodies & Finned Reservoirs: The substantial increase in oil volume paired with finned remote reservoirs rapidly dissipates heat, eliminating shock fade during sustained trail runs.
Adjustable Ride Height: Allows you to fine-tune your front-end lift height to perfectly level your vehicle or clear larger tire configurations without aggressive trimming.

What’s Included

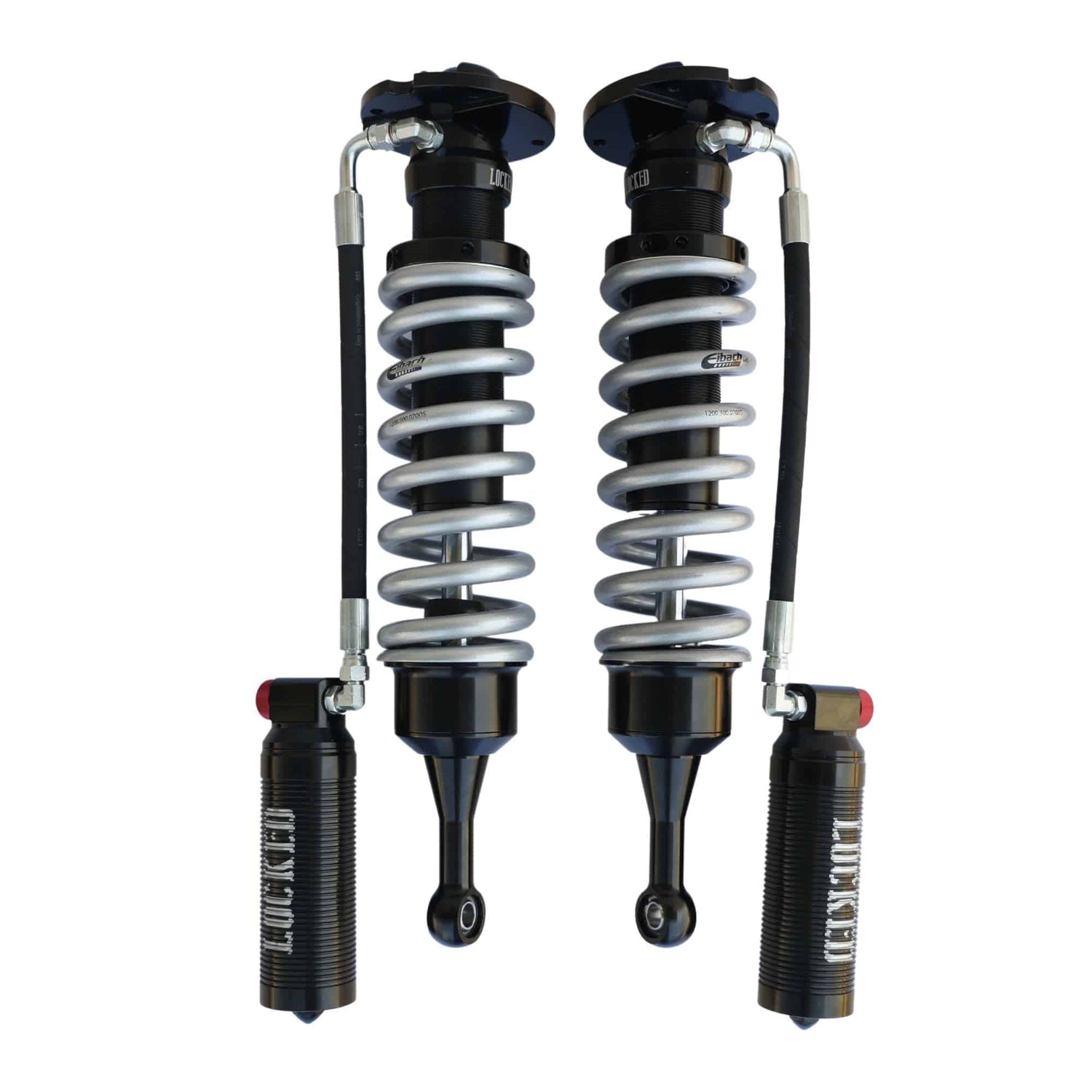

(2) Locked Offroad 2.5" Front Coilovers with Finned Remote Reservoirs
(2) HyperCo Front Springs (Rate matched to your vehicle's load profile)
Remote reservoir mounting brackets and all necessary installation hardware
Spanner wrench for front ride height adjustment

Pro Tip: Upgrading the front suspension on the Tundra and Sequoia changes your factory arm geometry significantly. We highly recommend pairing these coilovers with a set of aftermarket upper control arms to properly correct your alignment caster specs and maximize your usable droop travel. Don't forget that limit straps are mandatory with this kit to protect your internal shock components and keep your manufacturer's warranty intact.

Specifications

Vehicle Compatibility

3rd Gen Toyota Tundra (2022+)
Technical Specifications
- Fitment: 2022+ Toyota Tundra (3rd Gen / XK70 chassis) and 2023+ Toyota Sequoia (4th Gen / XK80 chassis)
- Shock Body: 2.5" Black zinc-coated steel for long-term corrosion protection against winter road salt and coastal humidity
- Shafts: 4130 Chromed and polished
- Seals: Heavy-duty Buna seals
- Machined Components: Anodized 6061 machined aluminum
- Spring Rate Options:
  650 lb/in (Best for stock or lightly modified setups, maintaining close-to-factory ride comfort)
  700 lb/in (Engineered for added front weight like steel bumpers, winches, or achieving a full 3" lift height)
- Serviceability: Fully rebuildable, serviceable, and tunable
Installation Information
- DIY Difficulty: Moderate
- Installing this coilover kit is a direct bolt-on process but requires robust shop equipment, including jacks, tall heavy-duty jack stands, and a comprehensive metric toolset to handle the factory torque specs on these full-size trucks.
- If you want to ensure your suspension is perfectly dialed and your alignment geometry is correct, leave it to the professionals. Reach out to the Overland Outfitters team to schedule a professional installation at our facility in Surrey, BC.
