Ironman 4x4 2" ATS Suspension Lift Kit for 2026+ Subaru Outback

$1,299⁰⁰ USD

Front Springs

2" Lift Medium Load (0-110 lbs Additional Load) 2" Lift Spec-C Heavy Load (110-176 lbs Additional Load)

Rear Springs

2" Lift Medium Load (0-440 lbs Additional Payload) 2" Lift Spec-C Heavy Load (660 lbs-GVM Additional Payload)

Ironman 4x4 2" ATS Suspension Lift Kit for 2026+ Subaru Outback - 2" Lift Medium Load (0-110 lbs Additional Load) / 2" Lift Medium Load (0-440 lbs Additional Payload) is a special order or built to order item, and will ship once received at our warehouse. Production and shipping times vary by manufacturer - Contact us for details.

Delivery and Shipping

We're committed to getting your gear to you as quickly and safely as possible and do our best to ship all in-stock items within 2 business days of the order date.
Please review our full Shipping Policy for more details.

Please note, many of the high-quality, specialty products we sell are built-to-order by the manufacturer, meaning there is an additional wait time before the item is even shipped to us or directly to you.
For a list of current lead times by manufacturer, please visit our Manufacturer Lead Times page.

Questions?

Call us at 778-547-2444
Monday-Friday | 9am-5pm PST

Or fill out our contact form below.

Description

Stock independent suspension configurations lack the necessary clearance for rutted logging roads and rocky trails, resulting in undercarriage scraping and frequent bottoming out when loaded down with gear. The Ironman 4x4 2" ATS Suspension Lift Kit for the 2026+ Subaru Outback solves this by providing a true 2-inch ride height increase without compromising the vehicle's driving dynamics. This complete system replaces your factory struts with trail-tested, extended-travel assemblies and tuned coil springs to significantly improve stability, control, and tire clearance on or off the pavement.

Key Features

True 2-Inch Ground Clearance Increase: Safely raises the chassis to clear trail obstacles and allows fitment of larger all-terrain tire combinations.
Extended-Travel Twin-Tube Struts: Nitrogen gas-charged twin-tube dampers provide increased suspension travel, keeping your tires firmly planted on washboard trails and uneven terrain.
Application-Specific Spring Rates: Professionally valved and tuned coils reduce the body roll and rear-end sagging common when carrying substantial cargo loads or tongue weight.
Corrected Drivetrain Geometry: The included subframe spacer kit lowers the rear subframe to maintain correct factory CV axle angles, preventing premature joint wear and keeping wheel alignment within factory spec.

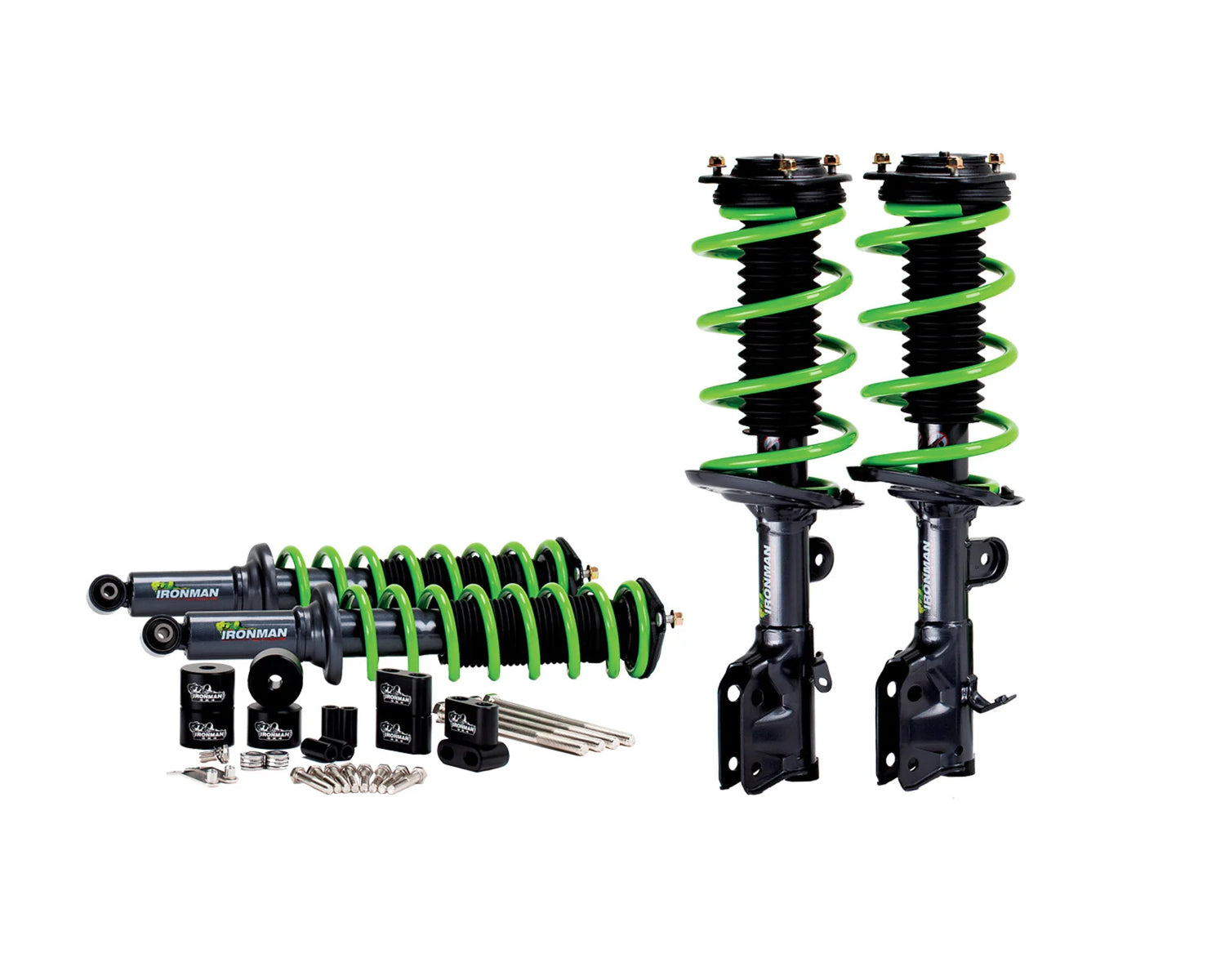

What’s Included

(2) Front ATS Pre-Assembled Coilovers
(2) Rear ATS Pre-Assembled Coilovers
(1) Subframe Spacer Kit
All necessary installation brackets and mounting hardware

Pro Tip: If you frequently haul heavy camp gear, a roof top tent, or a multi-bike rack on rough shuttle runs, bypass the Medium Load option and select the Spec-C Heavy Load variant. The stiffer rear spring rate (270 lbf/in vs 200 lbf/in) prevents sag under constant load, keeping your suspension out of the bump stops and maintaining predictable handling.

Specifications

Technical Specifications
- Fitment: 2026+ Subaru Outback (Standard, Touring, Limited, and XT sub-models).
- Fitment Restrictions: Will NOT work with the Wilderness edition or any sub-model equipped with electronic adaptive/electronic shocks.
- Lift Height: 2.0 inches (50mm)
- Strut Design: Twin-Tube Nitro Gas
- Load Variants (Select Option):
  ATS Medium Load: Front Spring Rate: 180 lbf/in | Rear Spring Rate: 200 lbf/in
  ATS Spec-C Heavy Load: Front Spring Rate: 190 lbf/in | Rear Spring Rate: 270 lbf/in
- Strut Dimensions (All Variants):
  Front Strut: 615mm Extended / 423mm Compressed
  Rear Strut: 535mm Extended / 351mm Compressed
- Recommended Wheel Size: 17x8 with +40mm offset
- Recommended Tire Size: 245/65R17
Installation Information
- DIY Difficulty: Medium
- Struts arrive fully pre-assembled, removing the need for a manual coil spring compressor. However, a solid mechanical background, a floor jack, and heavy-duty jack stands are required for subframe spacing.
- A complete professional wheel alignment is mandatory immediately following installation.
- Professional Installation: Skip the driveway hassle. Our team offers shop-proven installation and precision alignment services for your vehicle at our Surrey, BC facility.
