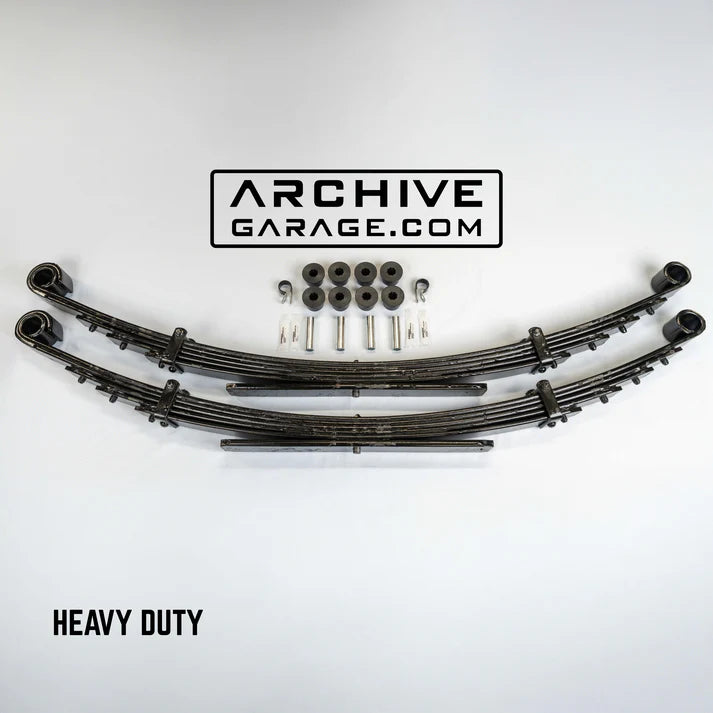

Archive Garage Tacoma 2005-2023 Explorer Series Heavy Duty Lift leaf Springs (PAIR)

$2,026.00 USD

Stealth HD Toyota U-Bolt Flip Kit

No Thanks Opt 3: Archive Standard speed bumps w/ring Opt 4: Archive firm speed bumps w/ ring Opt 5: U-Bolt plates + bolt-on air bump plates w/ kickout

Capacity

HD Heavy Duty 600-1250 lbs

Product variants

Archive Garage Tacoma 2005-2023 Explorer Series Heavy Duty Lift leaf Springs (PAIR) - No Thanks / HD Heavy Duty 600-1250 lbs is a special order or built to order item, and will ship as quickly as possible. Production and shipping times vary by manufacturer - see shipping information for details.

Questions?

Call us at 778-547-2444
Monday-Friday | 9am-5pm PST

Or fill out our contact form below.

Delivery and Shipping

We're committed to getting your gear to you as quickly and safely as possible and do our best to ship all in-stock items within 2 business days of the order date.
Please review our full Shipping Policy for more details.

Please note, many of the high-quality, specialty products we sell are built-to-order by the manufacturer, meaning there is an additional wait time before the item is even shipped to us or directly to you.
For a list of current lead times by manufacturer, please visit our Manufacturer Lead Times page.

Description

Features:

-Archive Tacoma Heavy Duty leaf packs are designed by Archive for severe duty off road travel!

-Made in USA with 5160 US steel, tip insert pads, FULL military wrap (only brand in HD range), bolted spring clips, and high quality poly bushings are included in price.

-Archive springs were tested for 2 years on dozens of Tacomas

-Carefully designed to NOT have interference issues so common with aftermarket springs in the Tacoma market

-Intended for 600-1250 lbs added to rear axle weight, to endure heavy payloads.

-Lift height: (vs stock unloaded 4WD DCSB) is estimated at about: 3" with 700 lbs, and 2.5" with 1250 lbs added to rear axle weight on Double Cab

-We recommend always having minimum of 500lbs added to rear axle weight so lift (4.0"+ unloaded) is not excessive, but ride is good.

-There is NOT a left or right version, If one spring has a hair more arch, use it on driver side. Load your vehicle accordingly + adjust LF coilover so front helps rear.

-These HD springs deliver 12"+ travel with Archive Hammer Hangers and shock relocation.

-Archive Hammer Hangers are recommended for best ride and handling possible.
